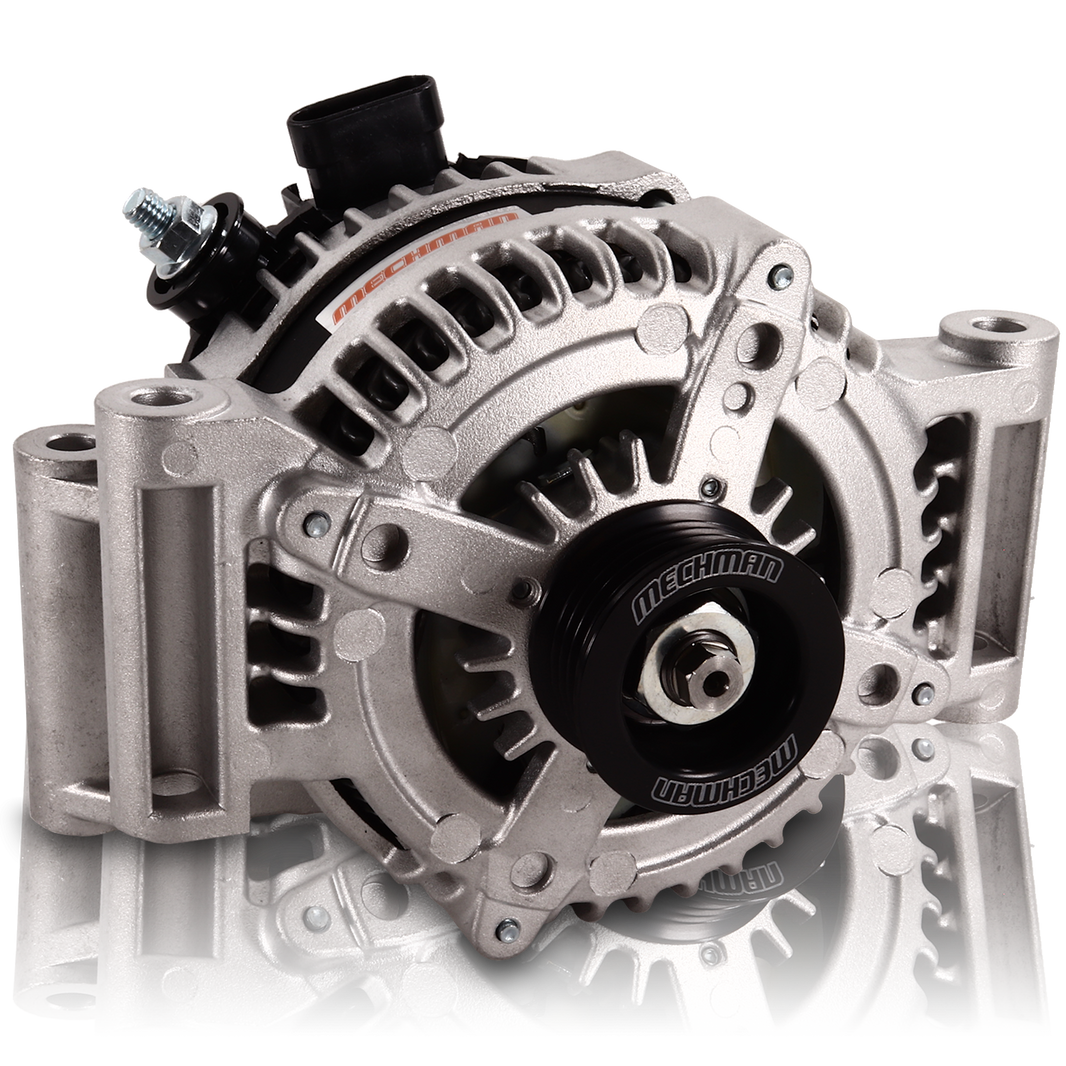

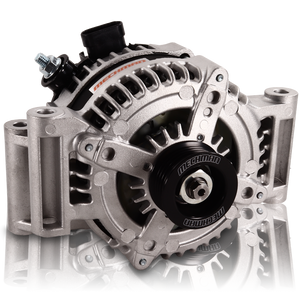

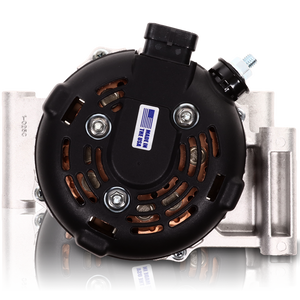

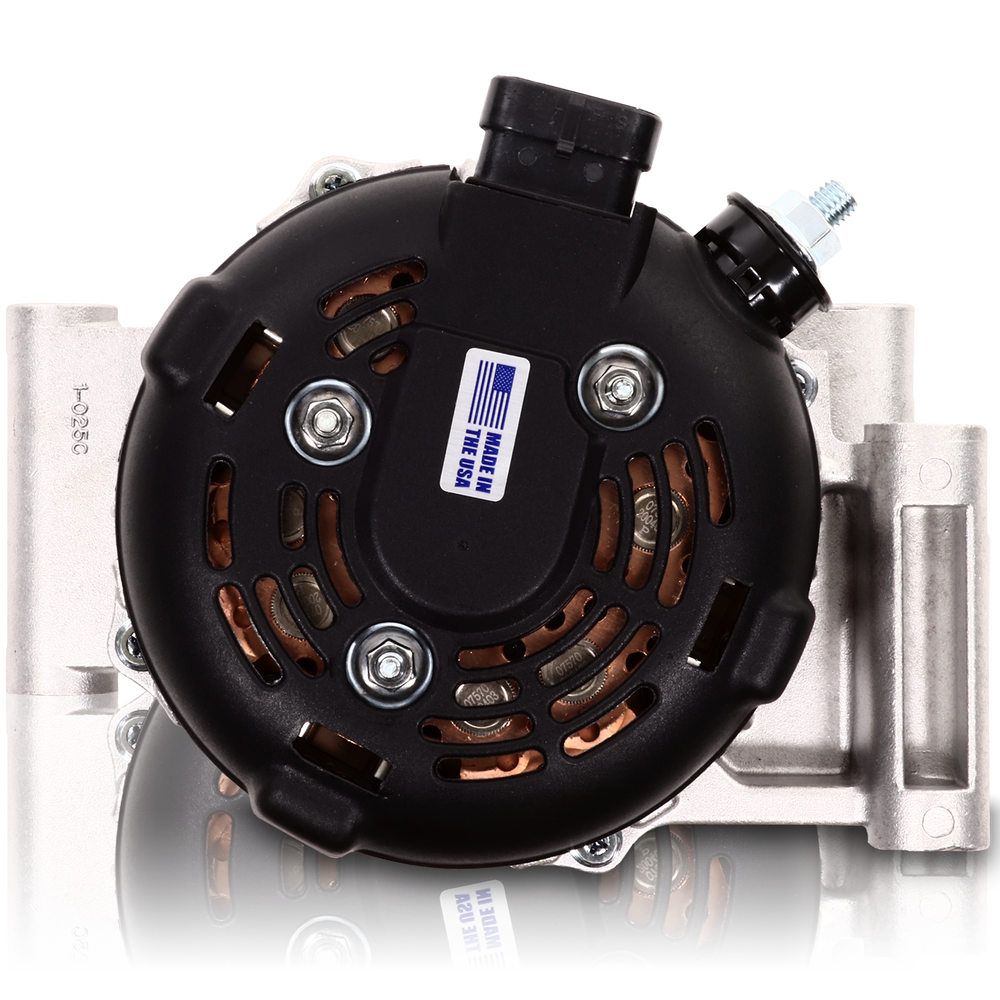

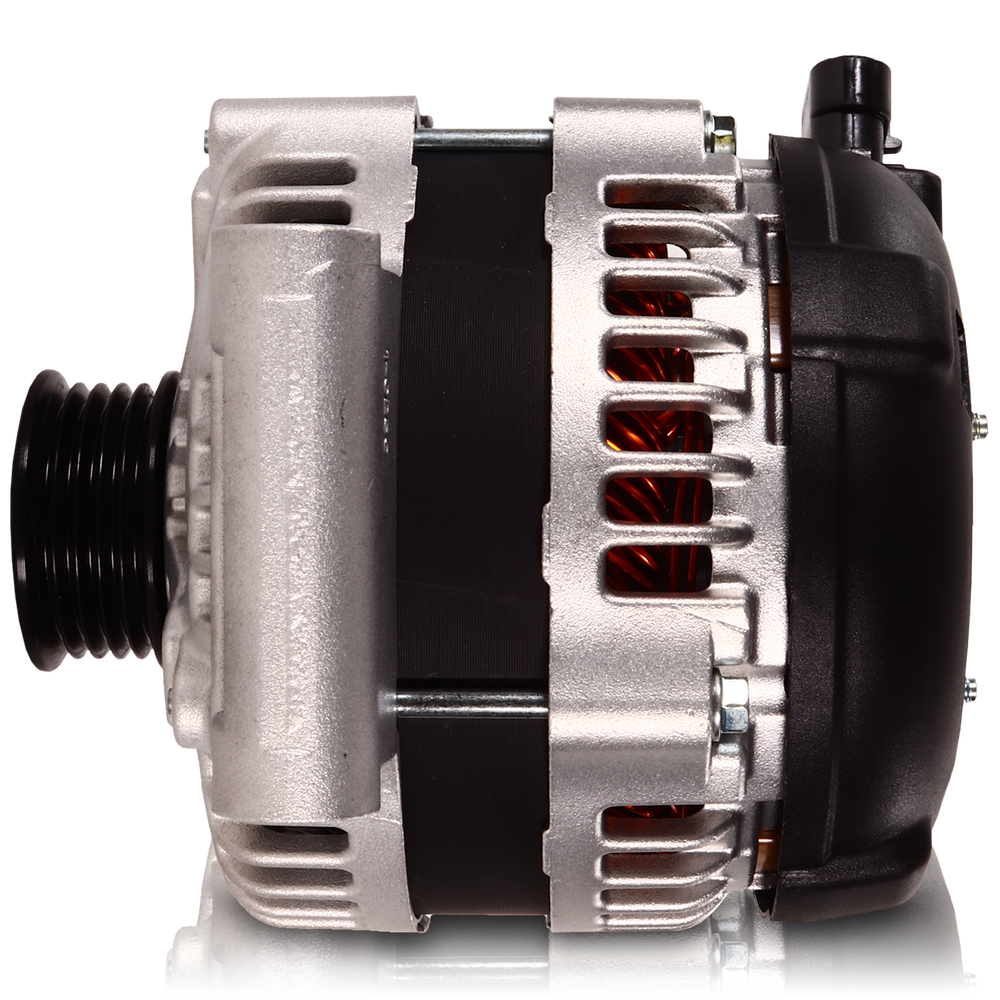

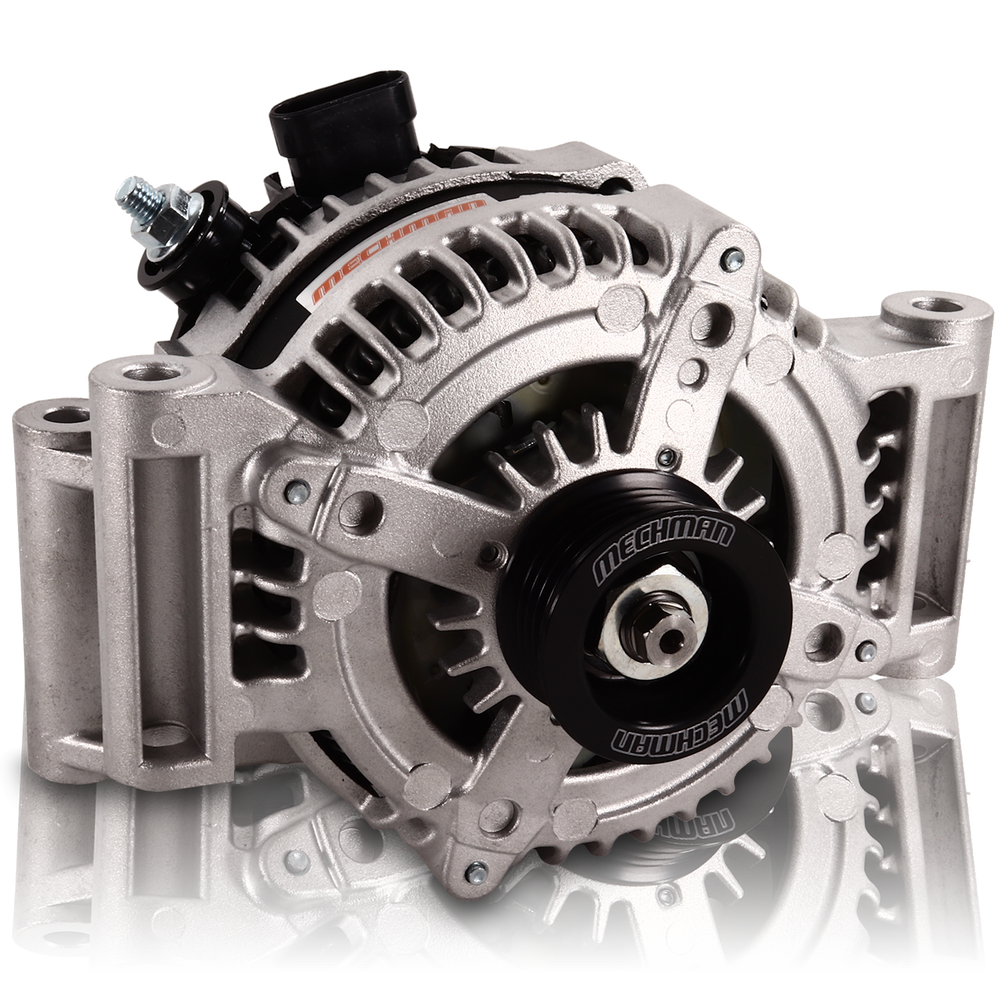

320-amp Alternator for GM Ecotec - Single Wire Turn On

Vendor:Mechman
SKU:11140320
Regular price $519.00
Quantity
Payment Options
Description Additional info Reviews
Description
Description Additional info Reviews
  • Description
  • Additional info
  • Reviews

    S Series

    The S series of 6 phase alternators offers incredible output in a compact and durable package. Highly efficient, these units use less horsepower per Kw produced than conventional 3 phase alternators. 12 diodes, twin rectifier plates and outstanding airflow ensure long service life, even in severe conditions. The 240 amp model offers the best balance between peak output, and output at engine idle RPM.

    Installation Notes:

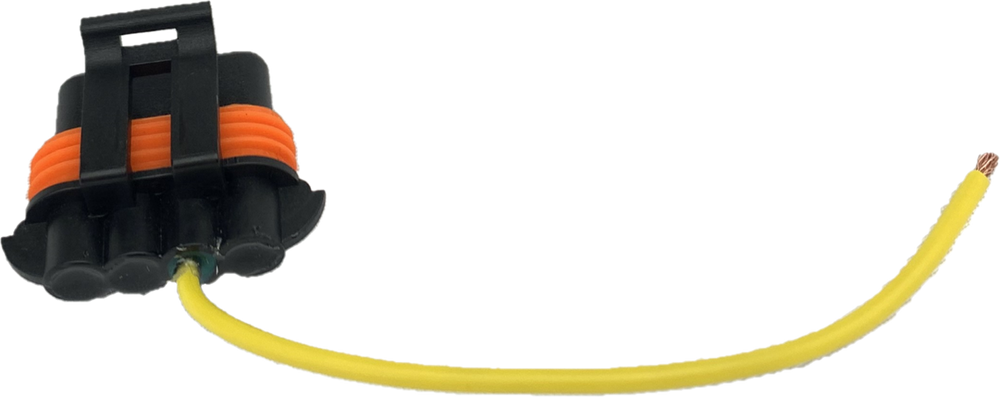

    A single wire on the provided pigtail gets connected to any ignition switched 12V+ source to turn the alternator on and off with the ignition switch. Simply run a properly sized positive and ground cable from the alternator to the terminals of the battery and the alternator will work perfectly.


    The installation of this unit will cause the "check battery" light to stay on in the dash.


    This unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt to be installed for proper belt tension.


    Name Model Engine Year(s) Amperage
    CHEVROLET Cavalier 2.2 Ecotec 03-05 240a
    CHEVROLET Cobalt 2.2 / 2.4 non- SC 05-09 240a
    CHEVROLET HHR 2.2 / 2.4 non- SC 06-11 240a
    CHEVROLET Malibu 2.2 / 2.4 non- SC 04-12 240a
    OLDSMOBILE Alero 2.2 02-04 240a
    PONTIAC G5 2.2 07-10 240a
    PONTIAC G5 2.4 07-08 240a
    PONTIAC Grand Am 2.2 02-05 240a
    PONTIAC Sunfire 2.2 02-05 240a
    SATURN Aura 2.4 08-09 240a
    SATURN Ion 2.0 04-07 240a
    SATURN Ion 2.2 03-07 240a
    SATURN Ion 2.4 06-07 240a
    SATURN Vue 2.2 02-07 240a
    SATURN Vue 2.4 08-10 240a
